Contact us for a quote. Finance available, with prices starting from £655 per month.
❯ No planning permission required*
❯ Fully compliant with HSE legislation on spray paint booths
❯ Rear paint fume extraction to maximise work space
❯ DRIP STOP anti-condensation ceiling panels
❯ Standard size: 7.0m L x 4.0m W x 2.4m H

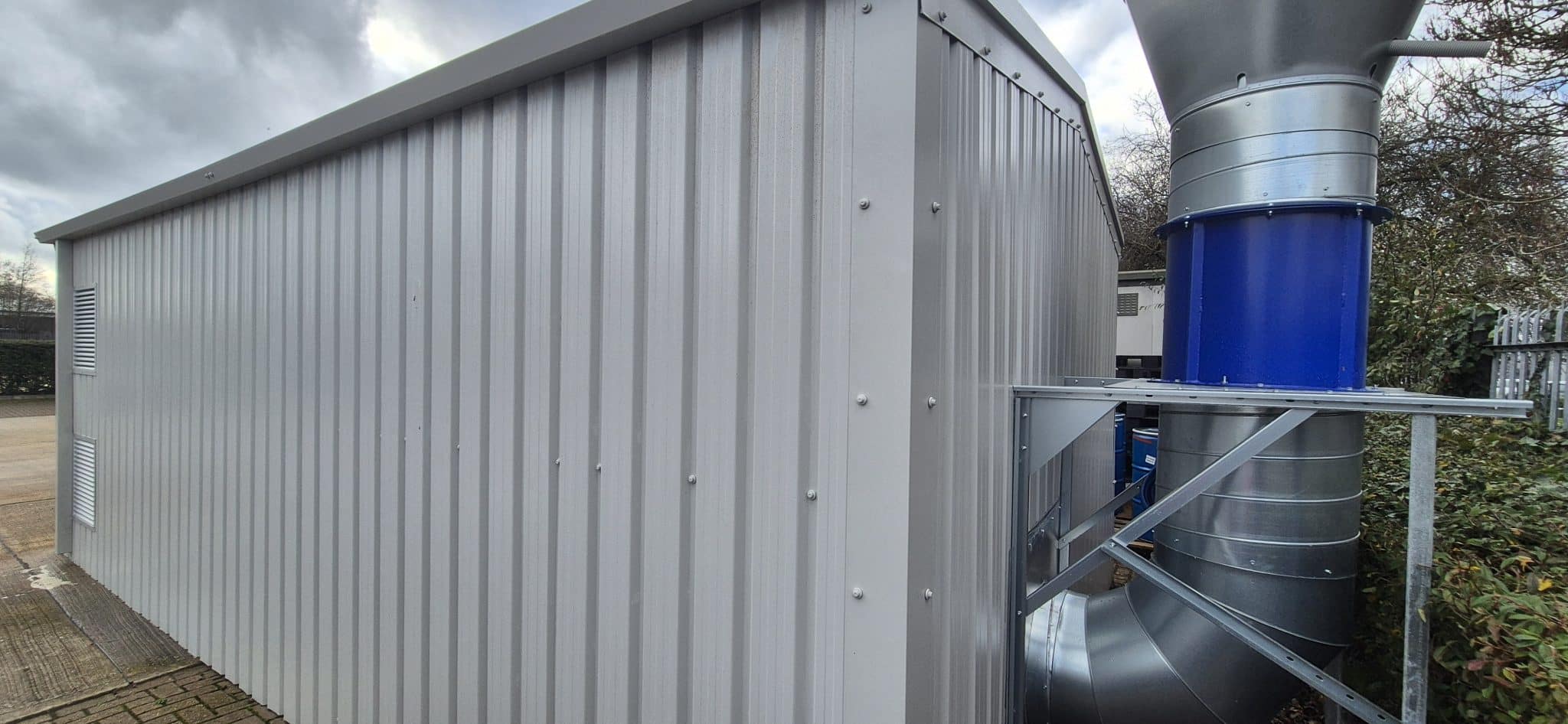

❯ 1.1kW (3-phase or single-phase) spark-proof belt-driven axial fan, 2.06m3/s extraction rate
❯ 10.7m/s airflow

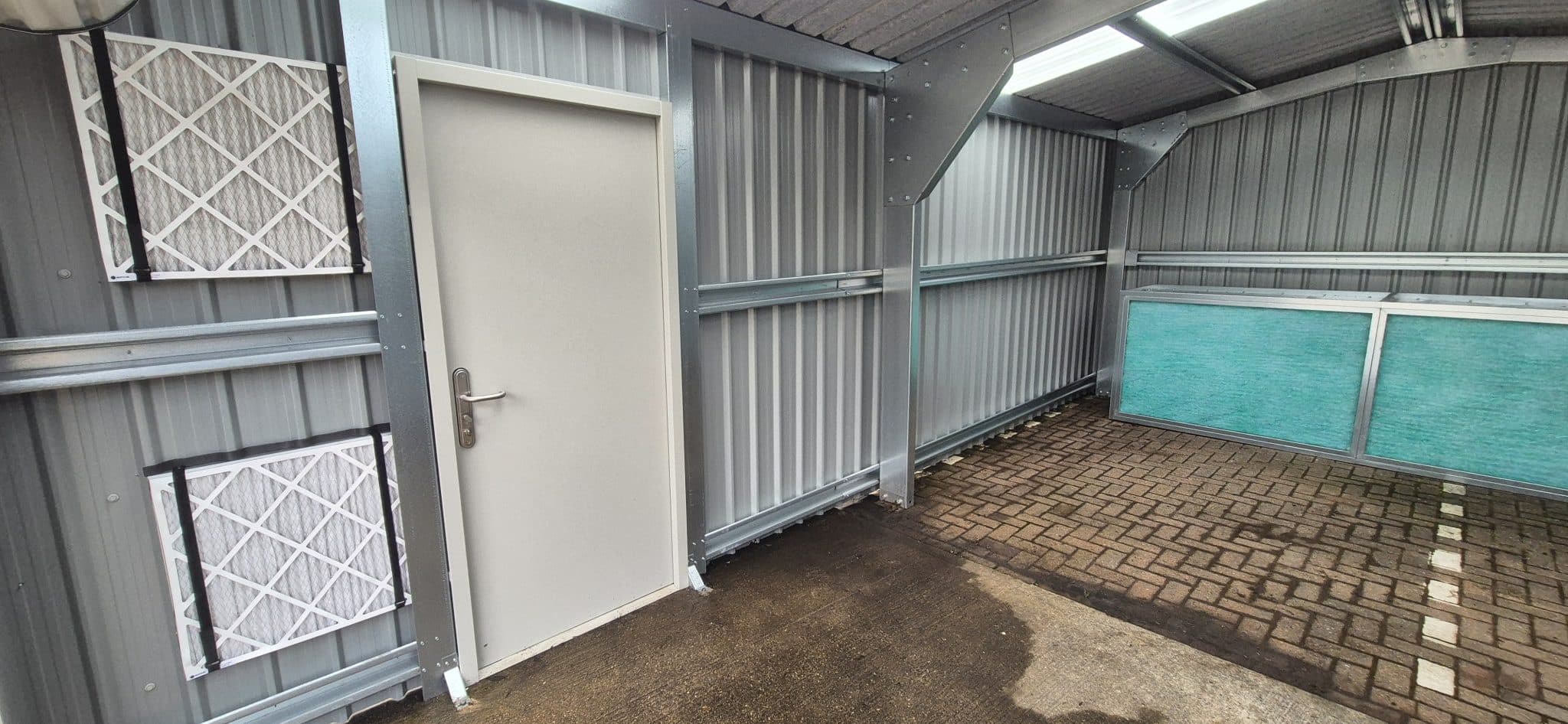

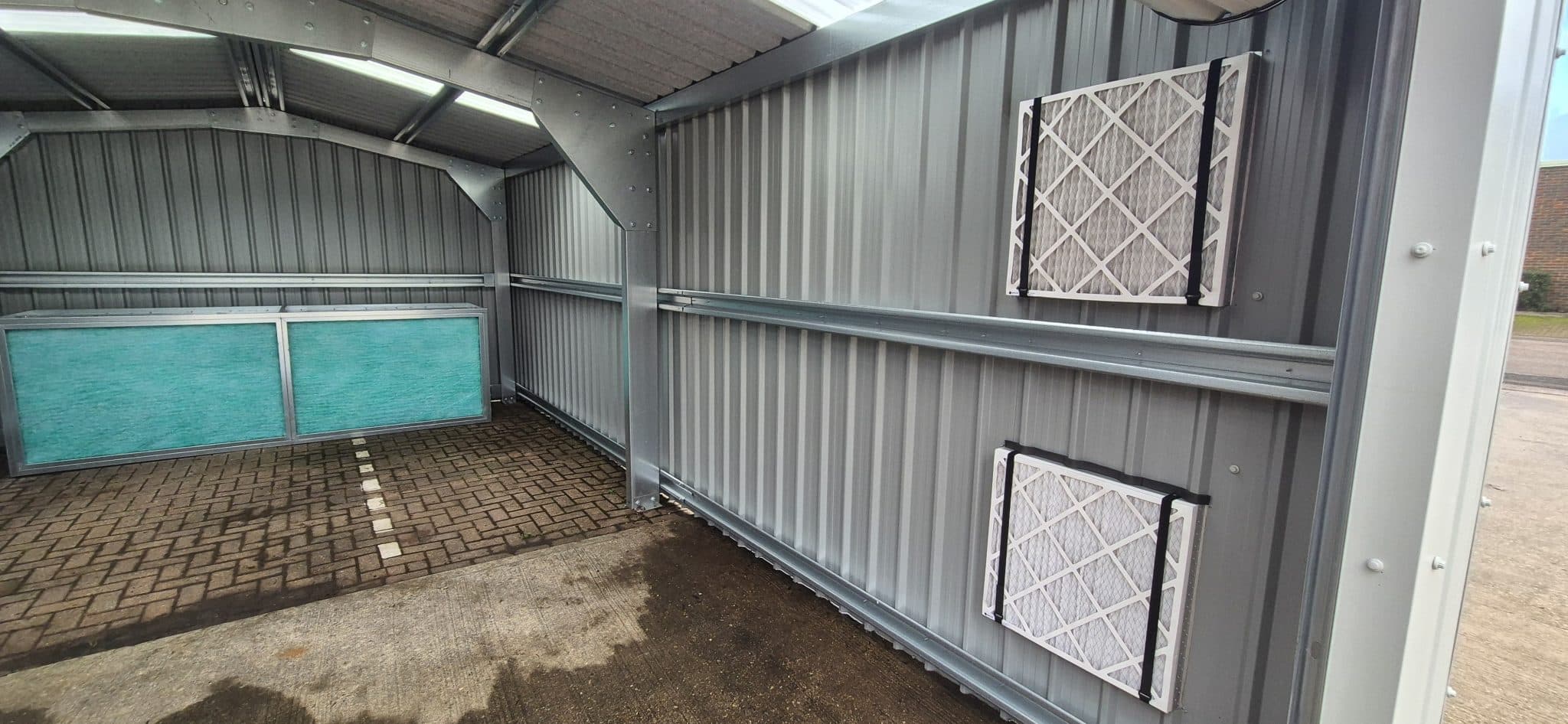

❯ 1 x 2 stage paint stop filtration (900mm filter media)

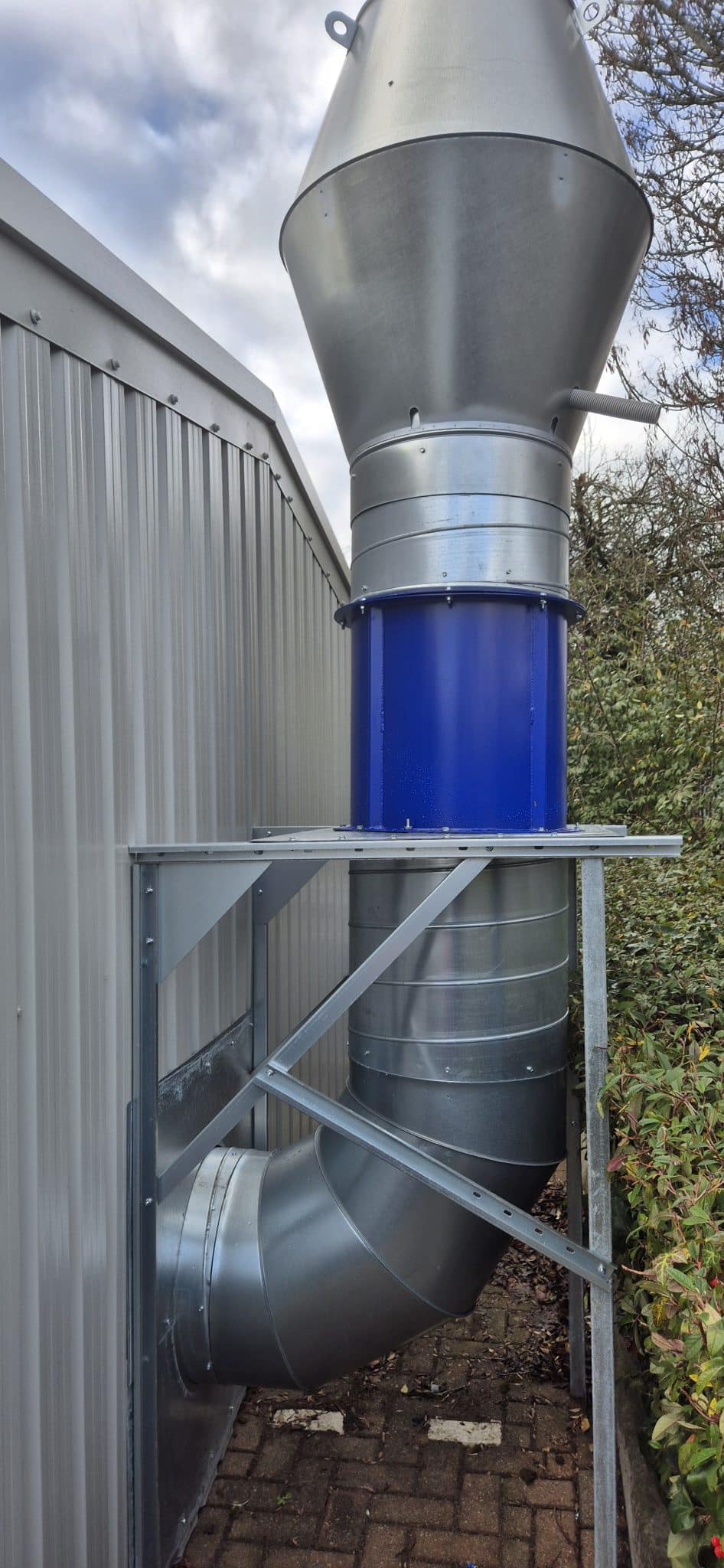

❯ 500mm exhaust ducting with jet cowl

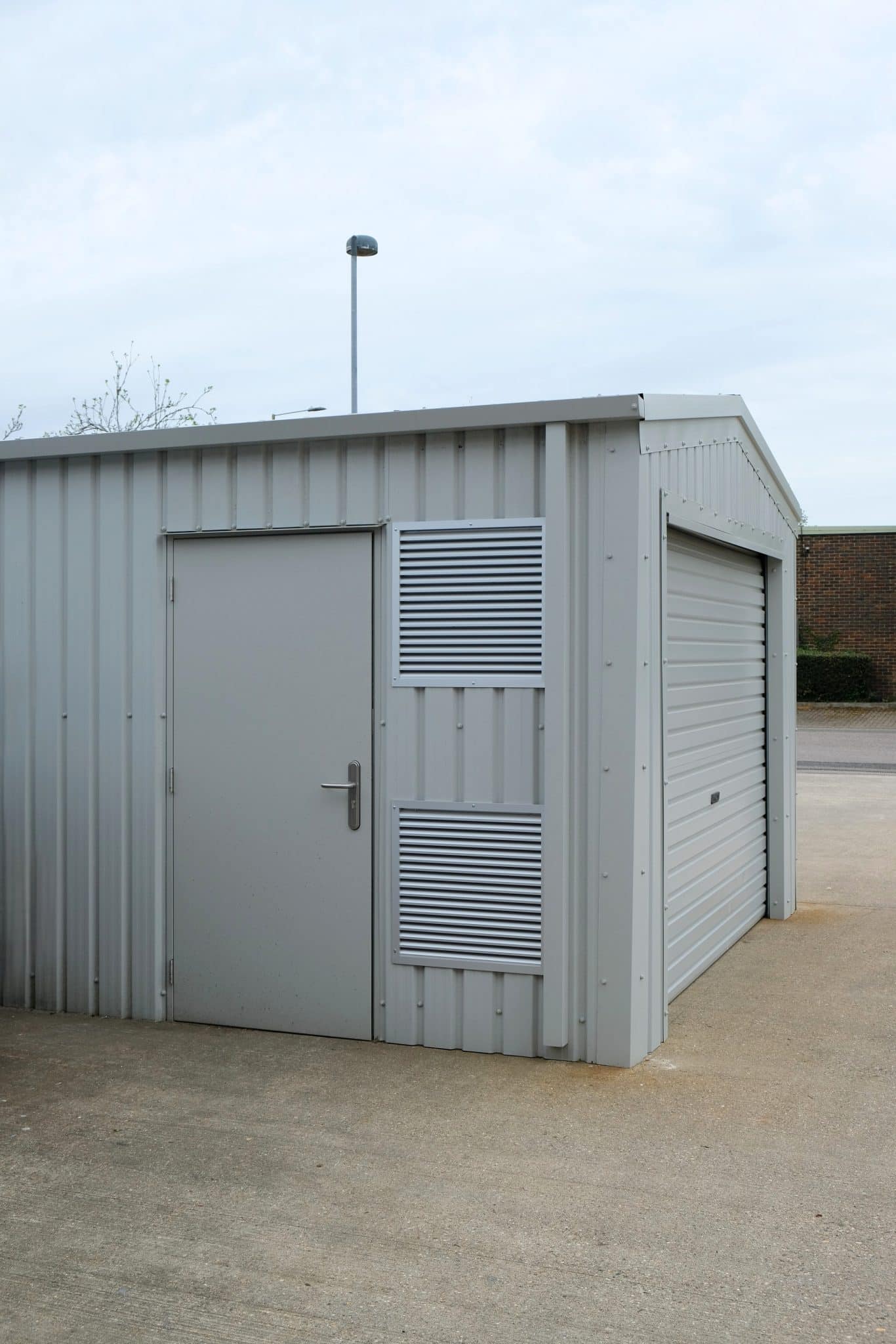

❯ 3 x 2.1m manually operated roller door, plus locking personnel access door
❯ Unique ground anchor system
❯ Huge space-saving solution
❯ 12-month warranty*

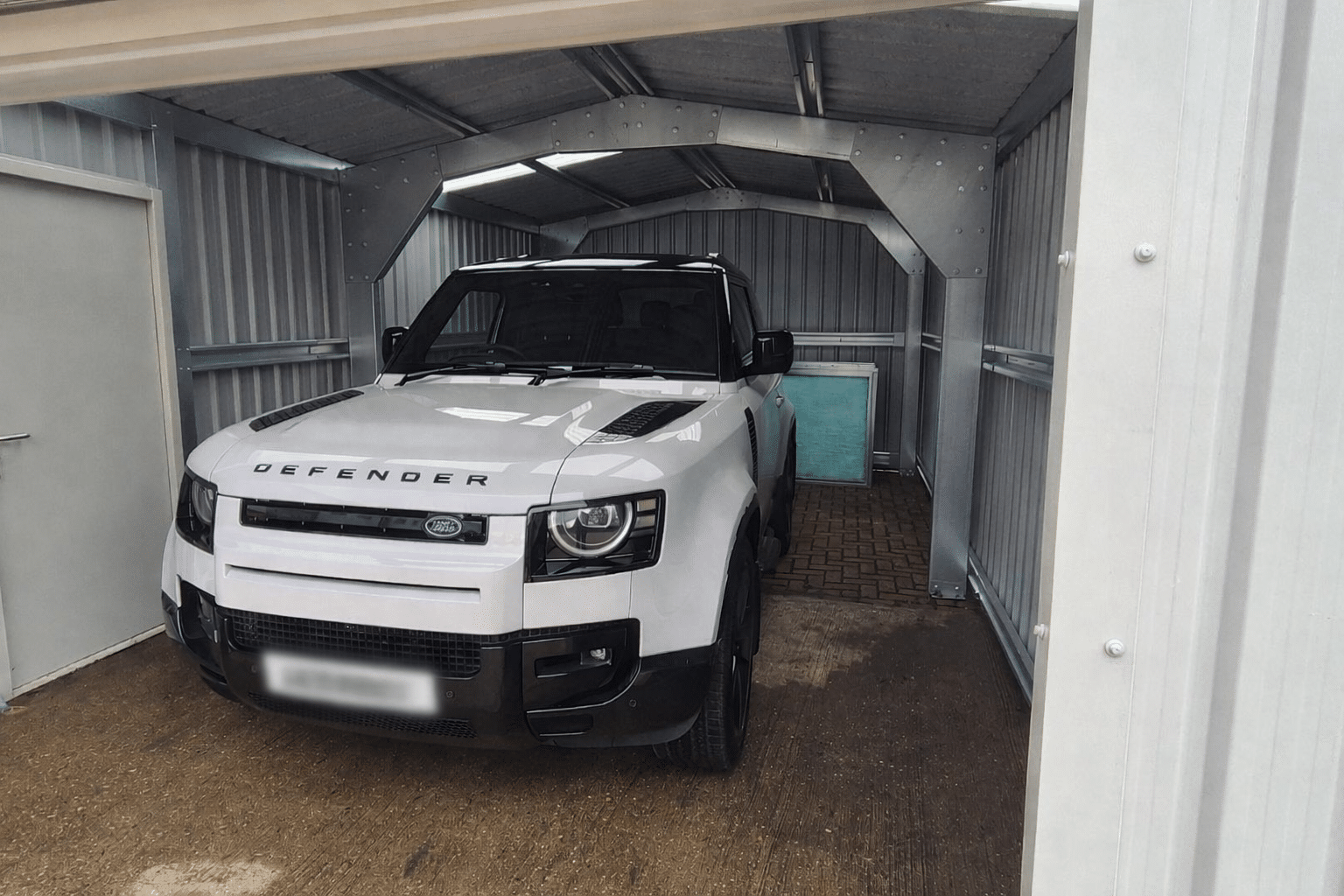

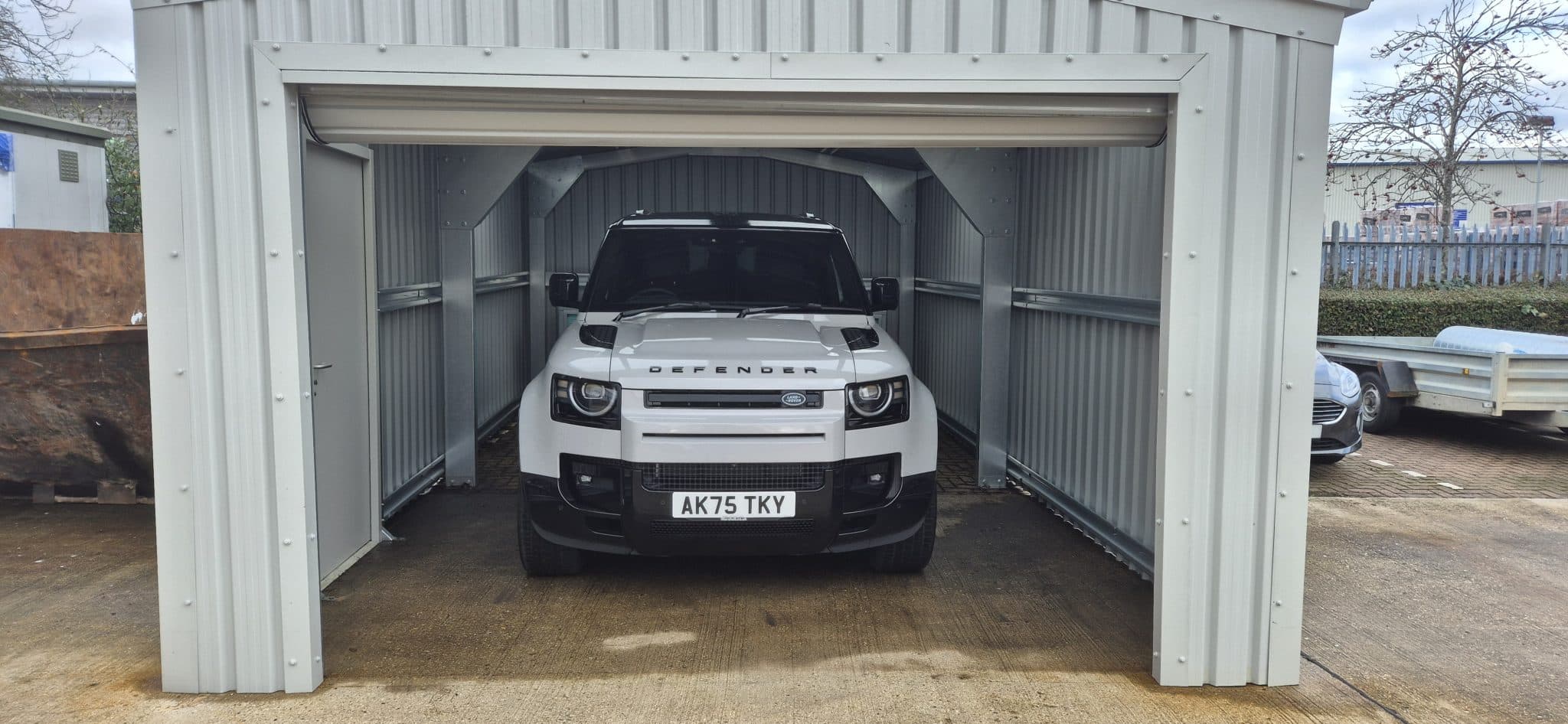

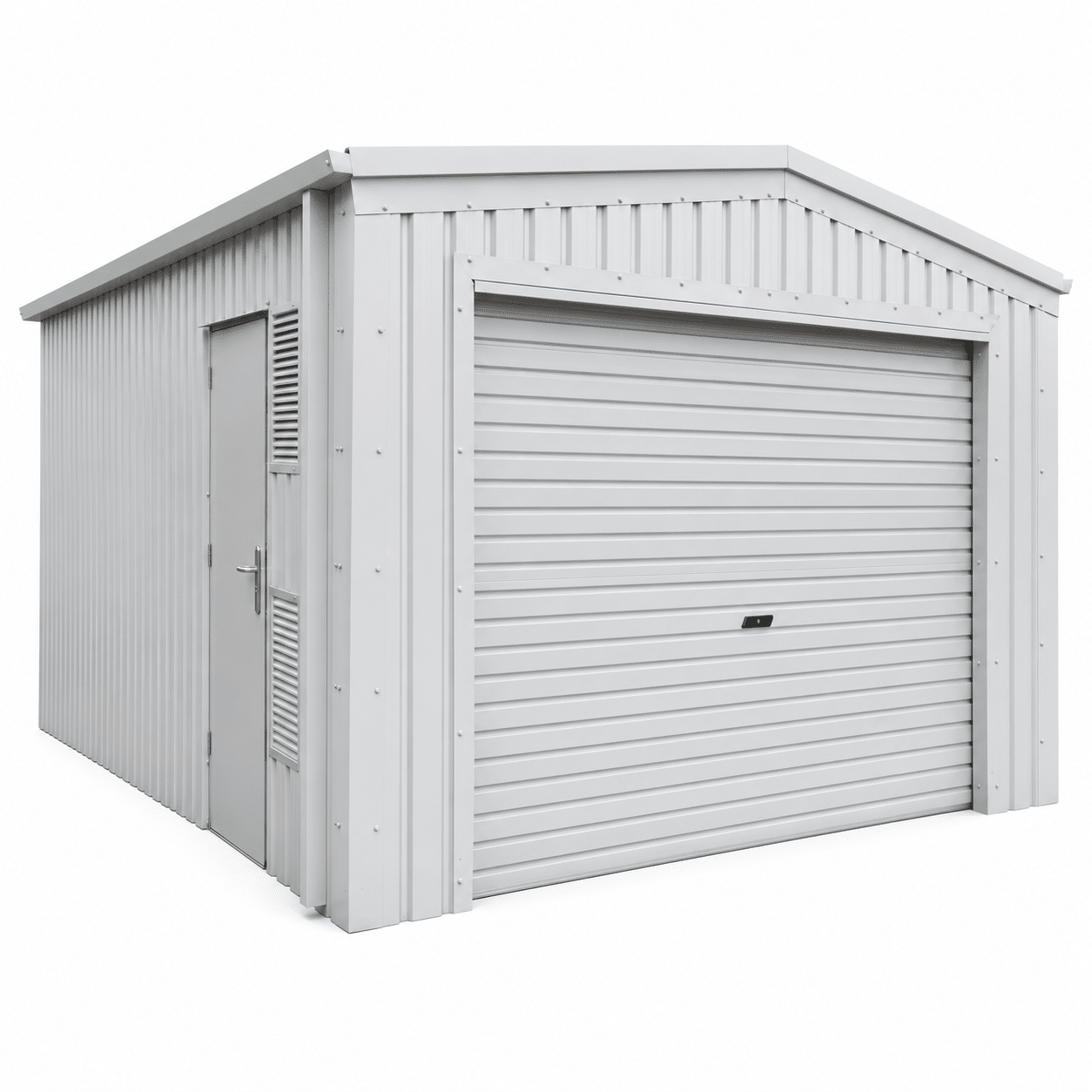

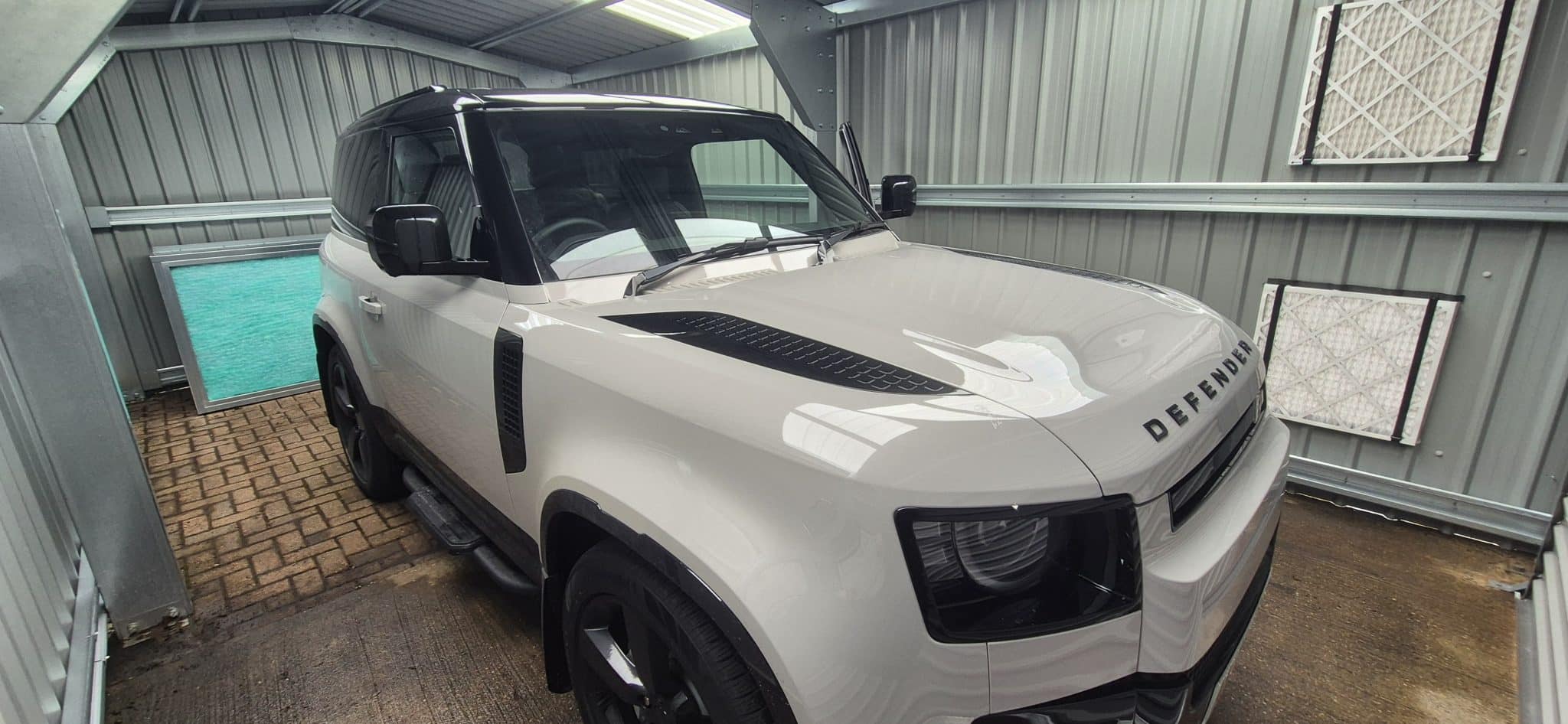

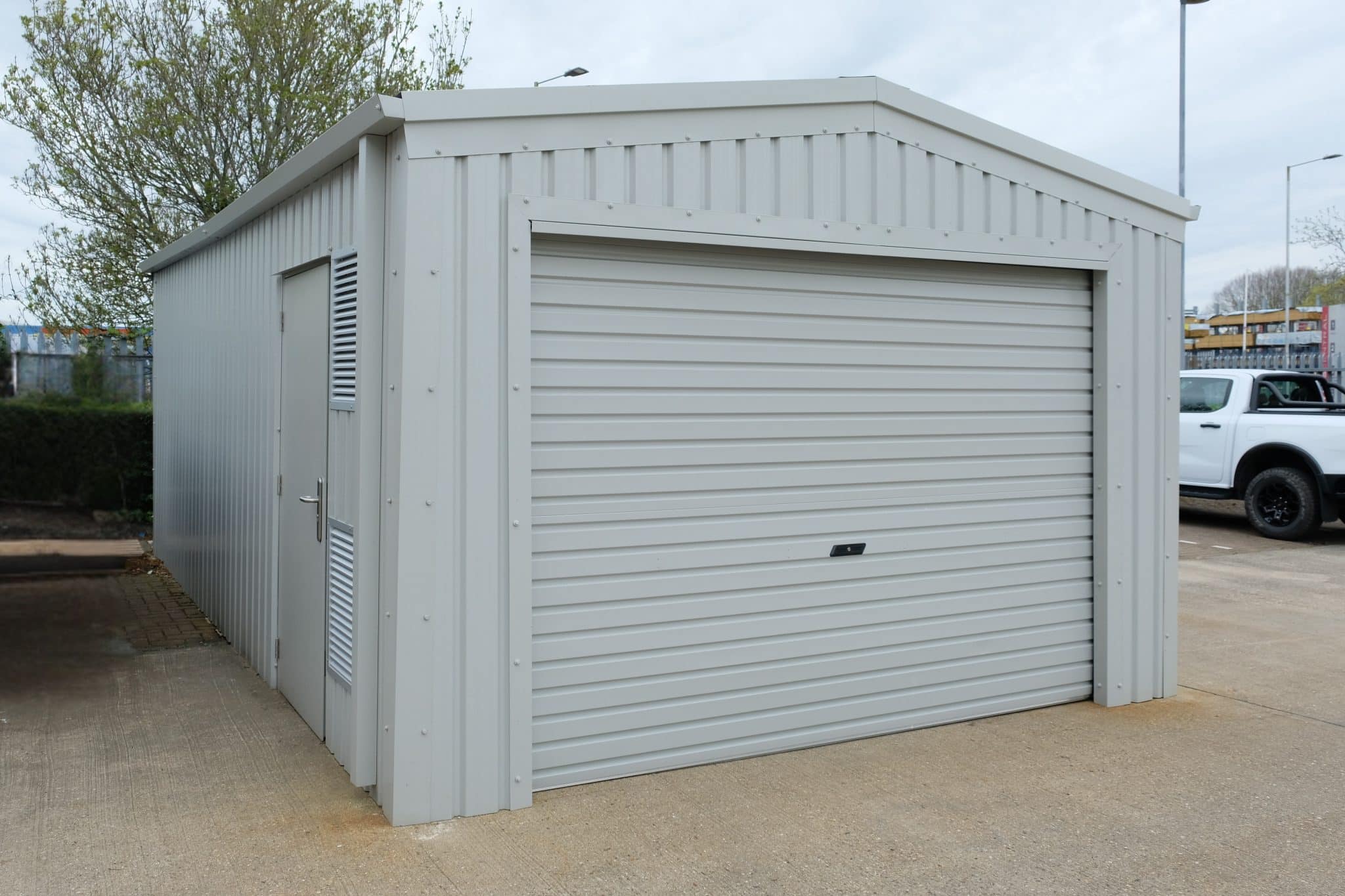

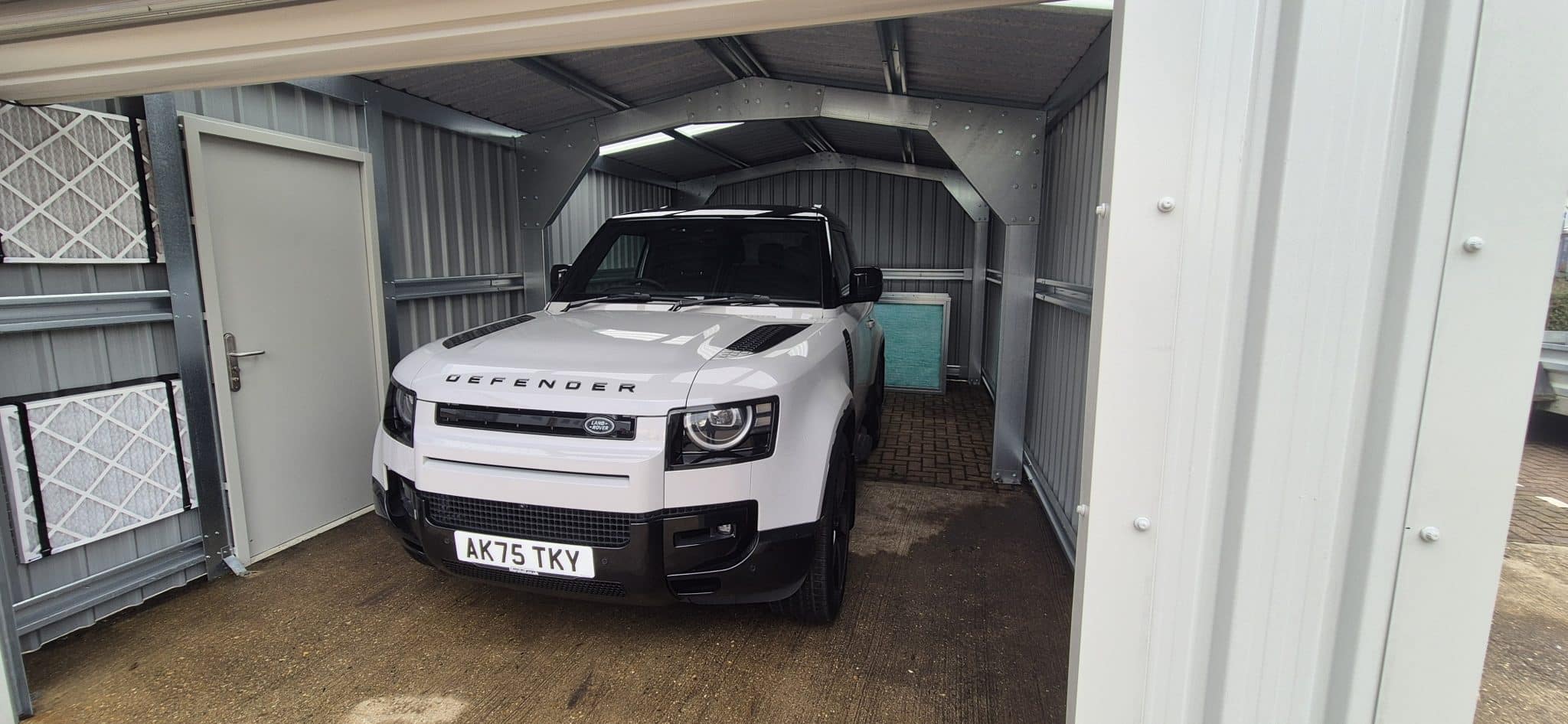

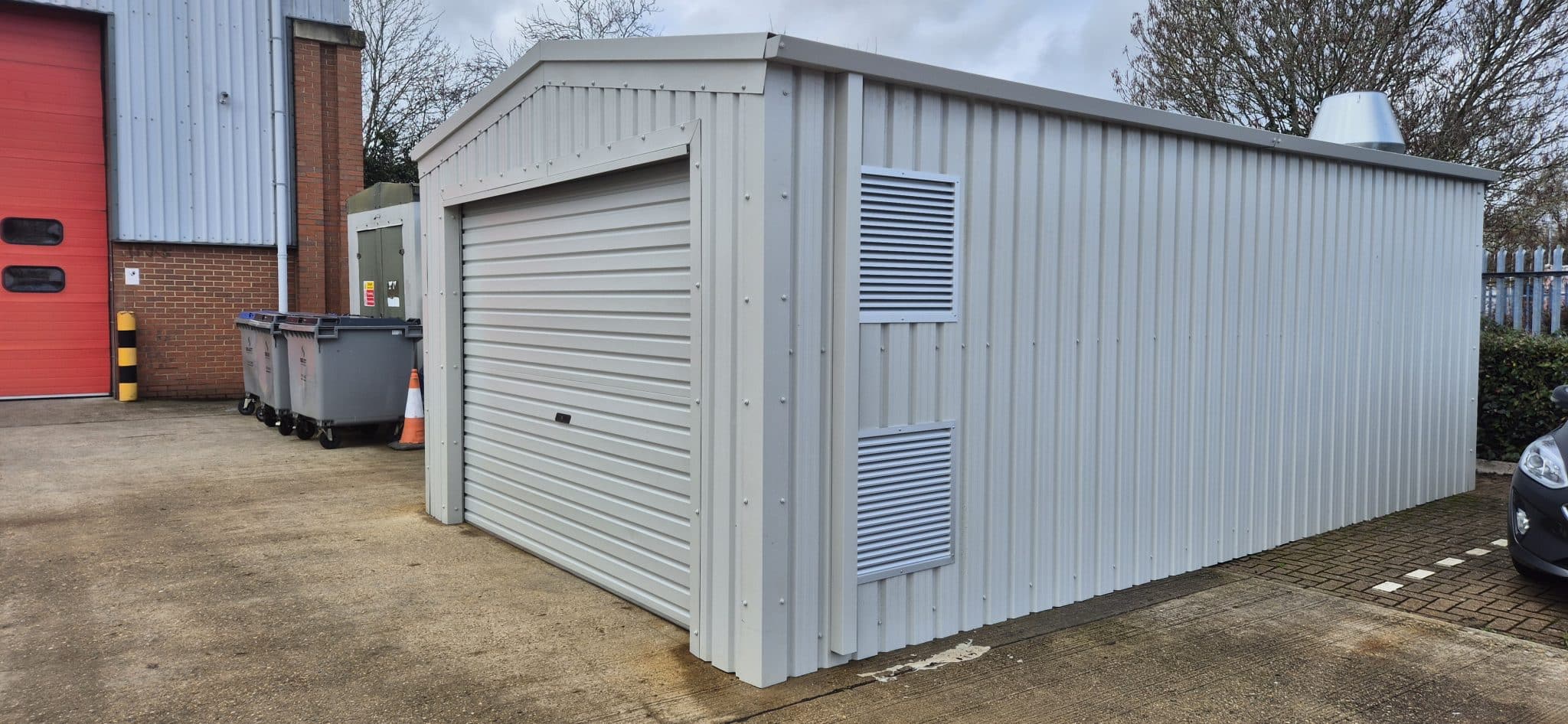

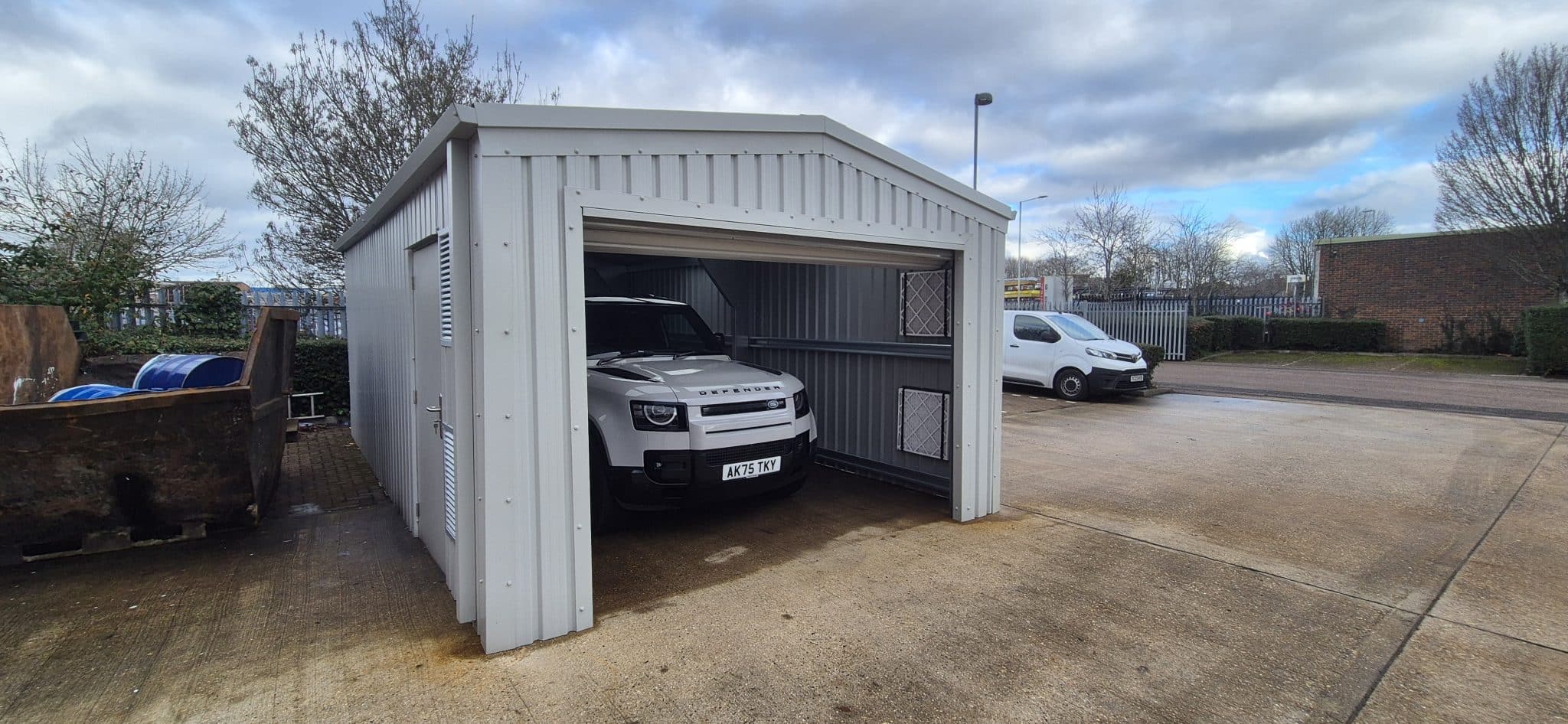

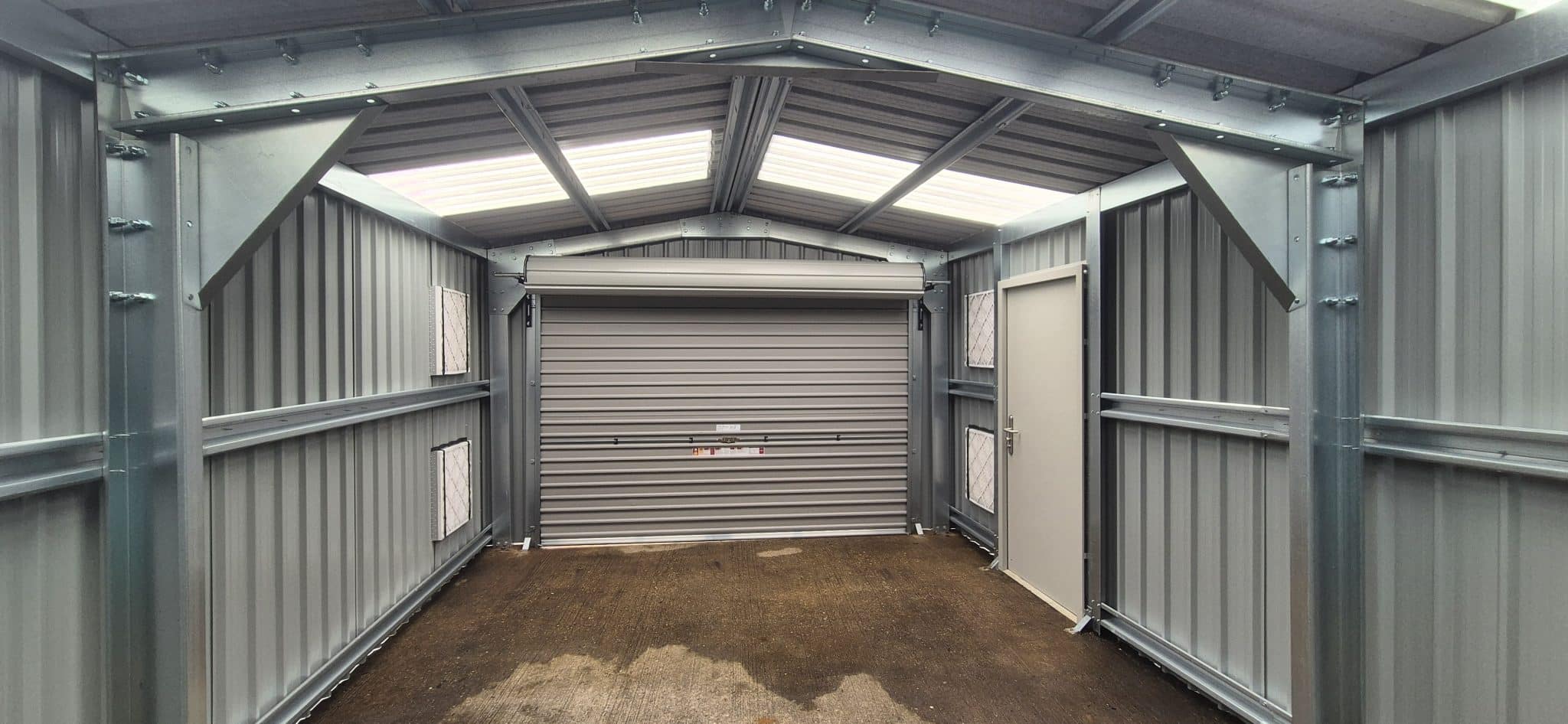

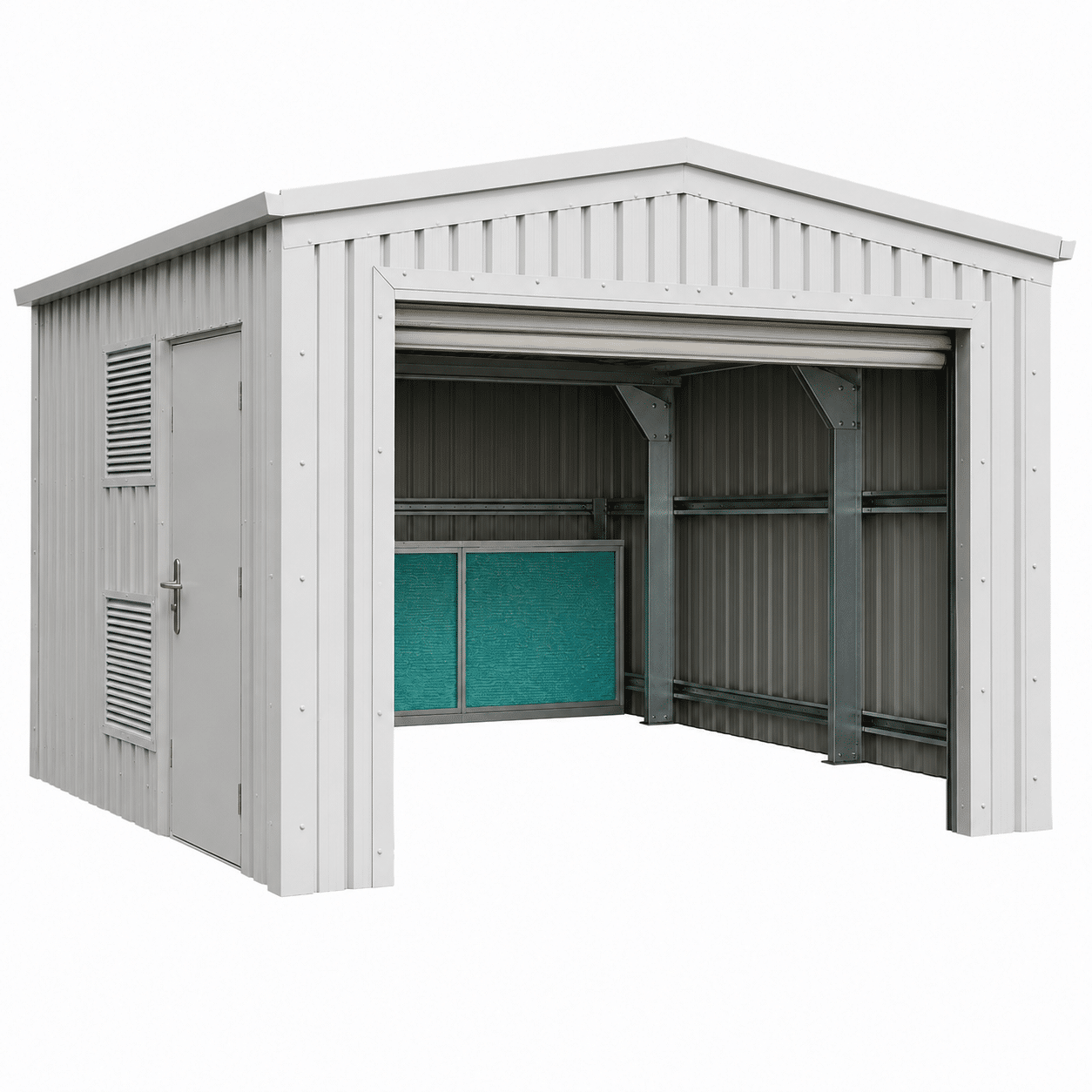

The market-leading SMART repair external spray booth SMART-X.T.N. is designed to free up your workshop space and increase productivity by carrying out SMART Repairs outside in a controlled environment. It’s perfect for Dealerships, Car Supermarkets, PDI Centres, Vehicle Auctions, Vehicle Hire centres and others performing SMART Repairs and paint spraying.

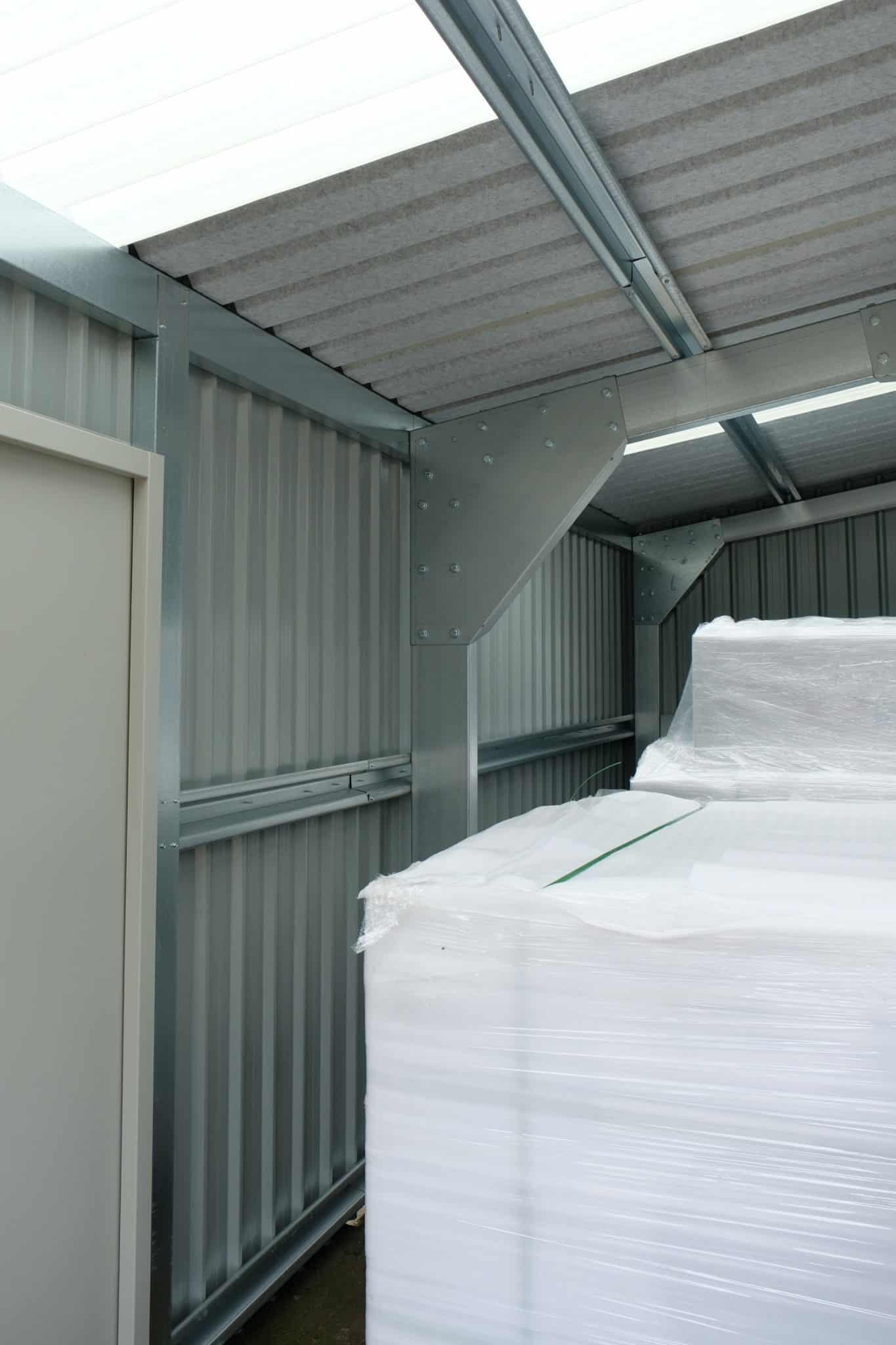

With standard and LCV size available, it comfortably accommodates a full-size and light commercial vehicles with room to work around it. The HSG140-compliant 1.1kW spark-proof extraction system delivers 0.7m/s airflow through the booth face, with 1 x 2 stage paint stop filtration. ATEX-rated LED roof lights and skylights fitted as standard. Galvanised steel frame to BS EN 10346:2009, Plastisol-coated cladding, anti-condensation barrier. Supplied and installed as a complete, self-contained unit.
If an external spray booth is not the right solution for your business, we also have the SMARTRE-FLEX Smart Repair Booth which is ideal for internal use.
Looking for more? Browse our full spray booth range or phone us
❯ Standard size: 7.0m L x 4.0m W x 2.4m H
❯ Enquire for LCV sizes
❯ Lighting
❯ Infrared lamps
Ask us for a bespoke quote and financing.
