Our flagship offering for busy bodyshops and smart repair centres. A self-contained, compliant external SMART repair spray booth. Installed externally or in the yard to increase capacity and throughput by saving valuable indoor floorspace. Supplied and installed.
For sites with limited indoor capacity that need a self contained spray bay outside, close to the vehicles.

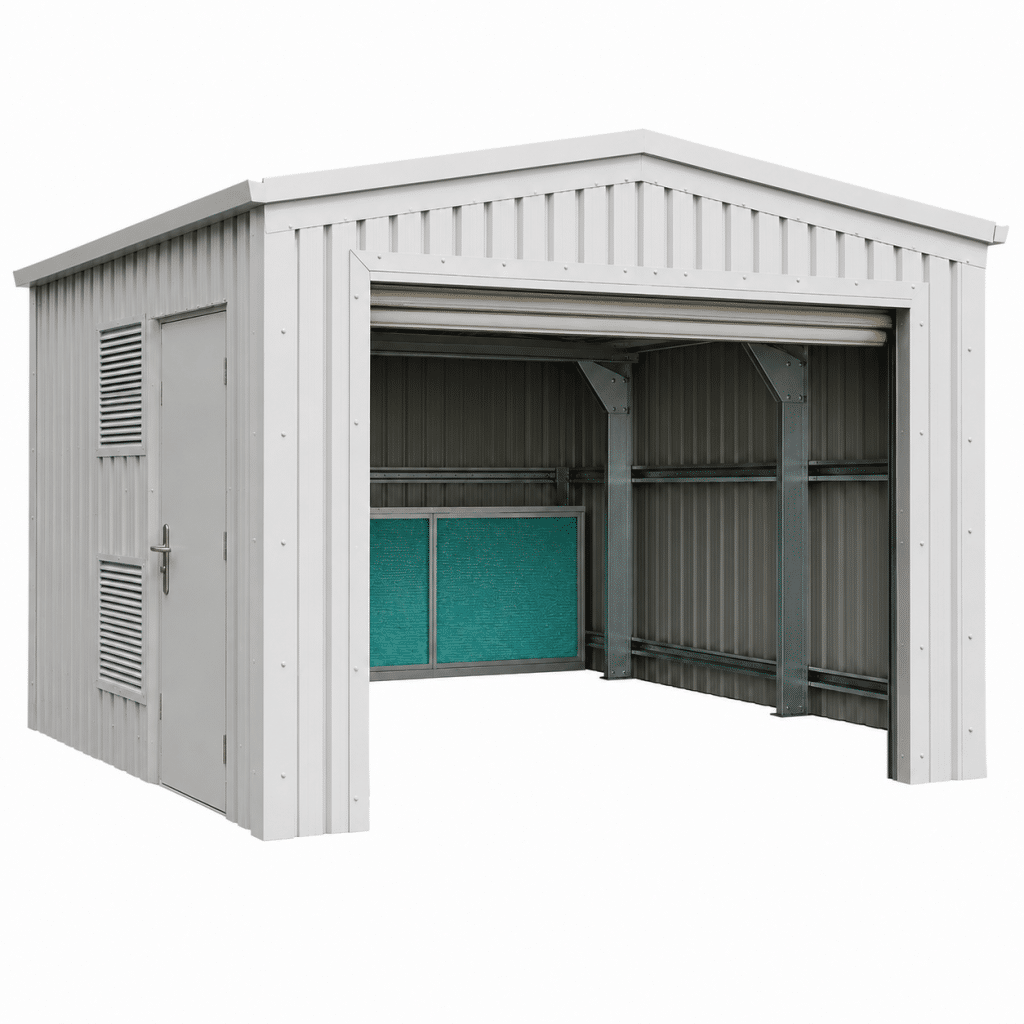

When indoor capacity runs out, add a spray bay in the yard. The SMART-X.T.N. installs outside as a self contained single skin steel building, 7 metres by 4 metres and 2.5 metres to eaves, with a manually operated roller door, personnel access door, skylights and three ATEX rated LED lights. A 1.1kW spark proof fan extracts at 2.06m3/s, giving 0.7m/sec air flow through the booth face in line with HSG140, so SMART repairs happen on site instead of leaving it.
SMART repairs at dealerships, car supermarkets, PDI centres, vehicle auctions and vehicle hire operations, bringing repairs on site instead of sending vehicles away. Installed in the yard, close to where the vehicles are.
No. It installs as a self contained unit, so planning permission is not required and the project moves at build speed rather than planning speed.
Supply and installation of the complete building and extraction system, subject to location. All electrical supply and connections are excluded and must be carried out by a qualified electrician.
A steel building: single skin plastisol coated steel cladding on hot dipped galvanised Cee section framing, designed to BS EN 1993-1-3:2006, with galvanised guttering and downpipes.
Yes. The roof carries an anti condensation barrier, skylights bring in daylight, and three ATEX zone 2 rated LED lights keep working light consistent.
Yes. The 1.1kW spark proof fan extracts at 2.06m3/s, giving 0.7m/sec air flow through the booth face as per HSG140, through two stage paint stop filtration.
Read how bodyshops, fleets and industrial operators put Masterflo booths to work, and the floor space and compliance they gained.
